Complete Guide to Generating Vacuum with Compressed Air

Compressed air systems naturally generate outward pressure, but workshops frequently require the exact opposite force for cleanup and material handling. Creating a functional vacuum from positive pneumatic pressure is completely achievable by directing high-velocity air through specialized venturi hardware. This process eliminates the need for standalone electric vacuum motors while providing strong suction in spaces where electrical sparks create safety hazards. Selecting the right components and matching compressor delivery to tool consumption ensures reliable negative pressure across demanding workshop projects.

The Venturi Principle and Pneumatic Fluid Dynamics

The core mechanism behind pneumatic vacuum generation is the Venturi effect, an application of Bernoulli’s fluid dynamics principle. When compressed air travels through a pipe and enters a narrowed throat, the velocity of the air stream increases significantly. As velocity spikes in this constricted zone, the static pressure of the air drops below atmospheric pressure. This localized pressure differential draws surrounding air or fluids through an intake port positioned directly at the constriction point. Both the input compressed air and the entrained vacuum air then exit together through a wider exhaust diffuser.

Achieving sufficient negative pressure depends directly on air velocity rather than static tank pressure alone. A standard shop air supply operating between 60 and 100 PSI provides enough kinetic energy to generate substantial vacuum levels when directed through a calibrated venturi nozzle. The ratio between consumed compressed air and entrained vacuum volume determines the overall efficiency of the device. Restricting the exhaust side can disrupt this pressure gradient and cause the vacuum to collapse immediately. Maintaining an unobstructed exhaust path is therefore critical whenever you set up a pneumatic suction system.

Dedicated Venturi Vacuum Guns versus DIY Ejector Assemblies

Commercial venturi tools provide the simplest method for generating suction from a workshop air line. Specialized tools like the Air Capital Aluminum Air Vac Model 12169 utilize heavy-wall aluminum construction with an integrated locking trigger and flexible suction hose. Similarly, the Zendex Tool QuickSpiff Venturi Air Vacuum features an injection-molded ABS handle and operates entirely without electricity by harnessing compressed air lines. Convertible systems such as the SAKAI Air Powered 2 in 1 Function Air Vacuum Kit allow users to switch between high-pressure blowing and vacuum suction using an internal directional valve. These purpose-built tools eliminate the guesswork of fabricating custom venturi chambers.

Workshops requiring specialized vacuum fixtures often assemble custom ejector manifolds using off-the-shelf pneumatic fittings. A DIY venturi generator typically incorporates a machined venturi block or a threaded plumbing tee fitted with an internal high-pressure jet nozzle. The high-pressure supply connects to the primary jet inlet, while the perpendicular port acts as the vacuum intake line. Custom fabrications allow operators to tailor nozzle dimensions for specific tasks like composite vacuum bagging or automated part picking. However, factory-engineered units like the LE LEMATEC Pneumatic Air Vacuum Blow Gun offer consistent machining tolerances that are difficult to replicate on a home workbench.

Air Compressor Sizing and Continuous CFM Requirements

Continuous pneumatic vacuum generation requires significantly more air volume than intermittent tools like finish nailers. A standard venturi vacuum gun consumes between four and twelve CFM of continuous airflow at 90 PSI to sustain negative pressure. Small pancake compressors with outputs under three CFM will experience rapid tank pressure drop within seconds of depressing the vacuum trigger. When the stored air volume depletes, pump delivery cannot keep up with nozzle demand, causing suction performance to degrade immediately. Properly sizing your air compressor ensures that continuous delivery ratings match or exceed the consumption rate of your chosen venturi device.

Operating duty cycle represents another crucial calculation when running continuous vacuum processes. Consumer compressors rated for intermittent duty cycles can overheat quickly if forced to run non-stop during lengthy vacuum evacuation cycles. Units equipped with large storage tanks provide an initial buffer, but sustained suction requires a high-output pump mechanism. Deciding between portable oil-free versus oil-lubricated pumps is vital because commercial cast-iron oil-lubricated pumps generally tolerate extended runtimes better than compact oil-free alternatives. For brief shop cleanups, smaller portable compressors remain practical if the operator pauses regularly between cleaning cycles.

Regulating Vacuum Depth and Precision Pressure Control

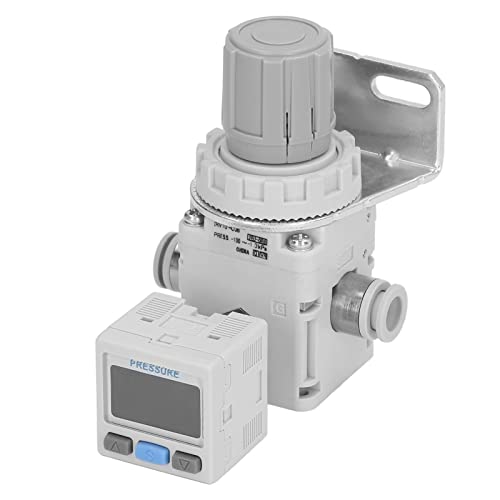

Not all pneumatic vacuum tasks require maximum unrestricted suction force. Delicate operations such as vacuum clamping thin wood veneers or evacuating sealed laboratory chambers demand exact negative pressure adjustments. Installing an inline vacuum regulator, such as the Fafeicy Air Pressure Regulator with Digital Gauge, allows technicians to monitor and tune suction levels across an operating range of -100 to -1.3 kPa. The digital display provides instantaneous feedback, enabling operators to maintain precise negative thresholds without relying on guesswork. A three-step handwheel adjustment mechanism lets you unlock the control, set the desired negative pressure, and lock it down securely.

Standard push-in tubing systems also benefit from modular vacuum valves designed for automated machinery. Units like the Jiawu Type Vacuum Pressure Regulator Valve incorporate an 8mm outer diameter pipe connection and a self-locking adjustment collar. This valve maintains consistent vacuum regulation across air compression pipelines, storage receivers, and precision filtration setups. Controlling the supply pressure delivered to the venturi generator is equally effective for coarse adjustments, as lowering incoming PSI directly reduces suction velocity. Pairing an accurate pneumatic regulator with a reliable vacuum gauge prevents over-pressurizing sealed vessels or warping fragile clamped materials.

Step-by-Step Assembly of a Shop Air Vacuum Rig

Building a reliable compressed air vacuum setup begins with preparing the primary air supply line. First, verify that your compressor tank is fully pressurized and set the main line regulator between 80 and 100 PSI. Connect a 3/8-inch internal diameter air hose directly to the tank manifold to minimize friction-induced pressure drop before the tool. Next, attach a clean particulate and moisture filter to the line to keep pipe scale and water droplets out of the narrow venturi orifice. Thread a standard 1/4-inch NPT quick-connect plug into the inlet of your chosen venturi gun or vacuum block using thread sealant tape.

The second stage of assembly involves securing the suction hose and collection containment. Attach the flexible suction tube firmly to the intake nozzle of the vacuum tool using the supplied locking collar or hose clamp. If you are handling abrasive materials or heavy shop debris, connect a durable collection bag or cyclonic separator to the exhaust port. Ensure that the exhaust diffuser remains completely open to avoid backpressure buildup that would otherwise stall the suction vortex. For liquid extraction tasks, position an intermediate catch reservoir between the suction wand and the venturi tool so moisture never contacts the exhaust airflow.

The final stage requires systematic testing and pressure calibration before beginning your actual task. Turn on the air supply and engage the tool trigger or opening ball valve to initiate compressed airflow. Place your hand lightly over the suction inlet to verify immediate negative pressure development. Adjust the incoming line regulator until the vacuum gauge registers your target negative pressure reading. Check all hose connections for audible air leaks, paying close attention to threaded fittings that could introduce parasitic pressure loss.

Maintenance, Moisture Control, and Workspace Safety

Continuous air consumption through venturi nozzles accelerates moisture condensation inside compressor storage tanks. As air decompresses rapidly across the venturi throat, temperature drops can also cause ambient moisture to condense around the exhaust port. Operators must drain compressor tanks daily through bottom petcocks or ball valves to prevent rust accumulation and water carryover into air tools. Using an inline desiccant dryer or coalescing filter prevents internal nozzle corrosion inside precision aluminum air vac bodies. Clean dry air maintains maximum nozzle velocity, which directly preserves peak suction strength.

Pneumatic vacuum generators produce noticeable acoustic noise due to high-velocity air shear at the exhaust nozzle. Operating at 90 to 150 PSI can generate sound levels exceeding standard conversation volumes, making reliable hearing protection essential during prolonged use. Eye protection is equally crucial because high-velocity exhaust streams can displace loose dust particles if collection bags are improperly secured. Avoid using pneumatic vacuum wands near flammable solvents or combustible vapors unless the system is specifically rated for hazardous location evacuation. Always disconnect the compressed air line before inspecting internal nozzles or clearing debris jams from the venturi throat.

Diagnosing Weak Suction and Troubleshooting Airflow

When a pneumatic vacuum fails to generate adequate suction, the primary cause is almost always an air volume restriction. If the compressor cannot deliver the required CFM, supply pressure will drop rapidly below the tool operating threshold. Inspect the delivery line for undersized 1/4-inch fittings, kinked hoses, or clogged quick-connect couplers that throttle airflow. Testing the dynamic line pressure with a gauge at the tool inlet reveals whether pressure collapses when the trigger is pulled. Upgrading to higher-flow couplers and wider hoses often restores full vacuum performance immediately.

A secondary failure point involves physical obstruction inside the venturi nozzle or exhaust channel. Because the venturi throat relies on precise aerodynamic contours, a single speck of shop debris or pipe sealant can disrupt the jet stream. Disassemble the nozzle housing, clean the jet orifice with compressed air or solvent, and verify that the diffuser cone remains smooth. In addition, check that the collection bag or exhaust filter has not become packed with fine dust. Backpressure on the discharge side directly cancels negative pressure at the intake, causing suction to vanish entirely.

Practical Workshop Applications and Hybrid Solutions

Pneumatic vacuums excel in workshop tasks where traditional motorized vacuums struggle or introduce hazards. Machinists frequently use tools like the LeeQinersw Pneumatic Vacuum And Air Blow Tool or the NVIXS Air Compressor Blow Gun to blast chips out of crevices and immediately collect metal swarf. Because these pneumatic tools contain no rotating electrical brushes, they eliminate spark risks when cleaning around machining coolants and fine dust. Automotive technicians rely on venturi suction guns for bleeding brake calipers, draining small fluid reservoirs, and cleaning hard-to-reach vehicle carpets. The compact profile of air vac nozzles allows easy access into tight engine bays and vehicle interior seams.

Hybrid and portable devices offer practical alternatives when connecting to a stationary compressor is inconvenient. Battery-powered options like the THINKWORK 20V Car Vacuum and Air Inflator combine an 18000 Pa motorized vacuum with an onboard 150 PSI inflator for mobile cleaning. Similarly, compact tools like the Omquot Electric Mini Compressed Air Vacuum Cleaner provide high-speed cordless blowing and suction without tethering to a heavy workshop hose. However, when stationary continuous power and rugged aluminum durability are required, line-fed venturi tools remain the benchmark. Matching your specific workflow to either dedicated pneumatic ejectors or standalone hybrid units ensures efficient cleaning and fluid management across every project.

Key Steps for Efficient Long-Term Pneumatic Vacuum Operation

Mastering compressed air vacuum generation requires balancing air volume supply against the physical demands of your specific task. Always verify that your compressor delivers adequate CFM at operating pressure before attempting sustained extraction. Keep supply air clean and dry to protect calibrated venturi orifices from premature wear and contamination. Inspect collection filters regularly to eliminate backpressure that degrades suction efficiency. By respecting pneumatic physics and maintaining your delivery equipment, you can reliably convert workshop air into powerful negative pressure whenever cleaning or extraction tasks arise.
