Troubleshooting Air Compressor Pump Leaks and Pressure Loss
Pressure loss inside your workshop air tank often traces back to cracked valve plates, worn compression rings, or blown head gaskets inside the pump housing. Hissing pump heads and slow tank recovery times ruin pneumatic tool efficiency, leaving heavy impact wrenches and ratchets starved for airflow in the middle of a project. Matching replacement hardware requires studying an accurate air compressor pump parts diagram before ordering fresh components for an overhaul. Sourcing reliable reed valve replacement kits, solid brass check valves, and durable compression piston rings helps restore factory working pressure without buying an entirely new compressor.
Reviewing manufacturer specifications, bolt spacing, and pump layouts ensures a tight seal that prevents air leaks. Selecting exact replacement hardware like a top-of-tank check valve or cylinder head gasket prevents repetitive breakdowns. Proper rebuild components preserve steady airflow and protect your pneumatic equipment during demanding shop jobs.
| Award | Product | ACR Score About ACR ScoreThe ACR Score is our own rating from 0 to 10, based on performance, design and build, ease of use, and value. It reflects independent research and is never influenced by manufacturers, retailers, or affiliate commissions. Learn more › | |
|---|---|---|---|
| Best Premium |
KK-4275 Reed Valve Replacement Kit for DeVilbiss
|
9.1/10 | Buy |
Allparts ABP-4950055 Complete Gasket Kit
|
8.6/10 | Buy | |
| Best Overall |
Allparts E103495-PR Oil-Free Air Compressor Piston
|
9.1/10 | Buy |
| Best Budget |
0.8mm Rubber Air Compressor Cylinder Head Gasket
|
8.6/10 | Buy |
Allparts A19715 Brass Air Compressor Check Valve
|
7.8/10 | Buy | |
| Best Value |
FABULETTA 8-Piece Air Compressor Valve Plate Set
|
7.8/10 | Buy |
FABULETTA Air Compressor Cylinder Head Rubber
|
8.3/10 | Buy | |
Air Compressor Cylinder Head Rubber Gasket Seal
|
8.3/10 | Buy |
KK-4275 Reed Valve Replacement Kit for DeVilbiss
The KK-4275 Reed Valve Replacement Kit by Allparts Equipment & Accessories restores pump compression on DeVilbiss-built twin-cylinder oil-lubricated compressors. It provides OEM-style reed valves and mounting screws for garage DIYers, woodworkers, and mechanics repairing Craftsman, DeWalt, or Porter Cable units.
Pros
- OEM-style materials engineered to match factory valve response and durability
- Includes replacement screws so you do not have to reuse stripped or fatigued factory hardware
- Cost-effective pump overhaul solution compared to purchasing a complete cylinder head or valve plate assembly
- Broad interchange across multiple brand names that share the DeVilbiss twin-cylinder pump platform
Cons
- Does not include replacement head gaskets or valve plate gaskets that may tear during cylinder teardown
- Requires matching your specific pump model number and parts diagram prior to purchase
- Requires mechanical disassembly of the pump head and careful surface cleaning to ensure proper seating
Allparts ABP-4950055 Complete Gasket Kit
This complete replacement gasket kit provides the reinforced sealing components needed to rebuild or service DeVilbiss B4900 series two-stage oil-lubricated compressor pumps. Designed for shop mechanics and equipment maintenance technicians, it helps restore pump compression and eliminate pressure leaks across critical pump joints.
Pros
- Includes all necessary gaskets for full or partial B4900 two-stage pump overhauls
- Redesigned with reinforced materials for improved durability under heavy heat and vibration
- Direct match for DeVilbiss B4900 series pumps, eliminating the need to cut custom gaskets
- Addresses common pump issues like loss of compression, head gasket blowouts, and crankcase leaks
Cons
- Does not include internal mechanical wear parts such as reed valves, piston rings, or head bolts
- Requires thorough cleaning and scraping of old gasket material from mating surfaces before installation
- Compatibility requires careful cross-referencing with pump nameplates and parts diagrams prior to purchase
Allparts E103495-PR Oil-Free Air Compressor Piston
The Allparts E103495-PR is an OEM replacement compression piston ring measuring 51mm ID by 66.5mm OD, engineered for MAT Industries oil-free compressor pumps. It is a cost-effective rebuild part for garage DIYers, woodworkers, and mechanics seeking to restore lost tank pressure on compatible Husky, Kobalt, Craftsman, or DeWalt units.
Pros
- Direct OEM replacement ring designed for MAT Industries oil-free compressor pump heads
- Accurate 51mm ID by 66.5mm OD dimensions help eliminate air bypass and restore proper pressure buildup
- Budget-friendly repair part that prevents the need to scrap an entire compressor over a worn ring
- Distributed by a US-based supplier with dedicated technical support to assist with part matching
Cons
- Requires verifying your exact compressor model number and parts diagram prior to purchase to guarantee fitment
- Does not include replacement cylinder sleeves, valve plate gaskets, or head seals that may also need servicing
- Installation requires partial compressor pump teardown and mechanical comfort with cylinder reassembly

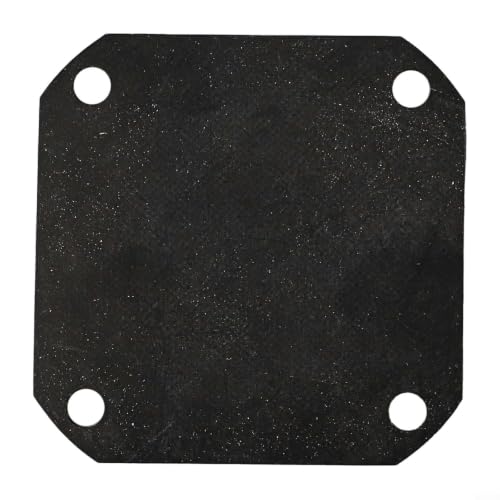

0.8mm Rubber Air Compressor Cylinder Head Gasket
This Type E 0.8mm rubber cylinder head gasket is designed to restore airtight compression on compatible portable and garage air compressor pumps. It provides a simple, targeted fix for DIYers and technicians dealing with pump head leaks and pressure loss.
Pros
- Economical solution for restoring proper compression without replacing the entire pump
- 0.8mm rubber thickness provides pliable sealing under cylinder head bolt tension
- Specific Type E profile suits matching small compressor head and valve plate patterns
- Lightweight and compact spare to keep on hand for sudden pump head failures
Cons
- Packaged as a single gasket rather than a complete top-end pump rebuild kit
- Requires careful physical measurement against the seller size chart before ordering
- Not universally compatible across all compressor pump brands and head bolt patterns
Allparts A19715 Brass Air Compressor Check Valve
The Allparts A19715 is a solid brass top-of-tank air compressor check valve featuring 1/2-inch NPT tank and outlet threads plus an integrated 1/8-inch compression unloader port. It is an ideal replacement for garage DIYers and shop mechanics fixing continuous unloader leaks or pump backpressure issues.
Pros
- Heavy-duty solid brass body resists corrosion from internal tank moisture
- Features exact 1/2-inch NPT tank and outlet connections for straightforward plumbing replacements
- Dedicated 1/8-inch compression unloader port connects directly to standard pressure switch relief tubes
- Compact 3 x 1.5 x 1.5 inch profile fits tight spaces on top of the air tank
Cons
- Requires careful verification of compressor model diagrams and thread dimensions prior to ordering
- PTFE thread tape or liquid pipe sealant is not included and must be supplied for installation
- Specific working pressure and CFM limits are not listed in the manufacturer specifications
FABULETTA 8-Piece Air Compressor Valve Plate Set
This 8-piece metal valve plate set features a 42mm hole-to-hole configuration designed to restore proper cylinder head sealing on compatible oil-free or oil-lubricated piston air compressors. It provides an affordable, direct repair solution for garage DIYers and equipment technicians looking to rebuild pumps suffering from pressure loss.
Pros
- Complete 8-piece kit covers multiple valve replacements or future rebuilds
- Durable metal build handles reciprocating piston action and operating heat
- Fits both oil-free and oil-lubricated compressor designs with 42mm spacing
- Inexpensive fix to resolve slow air recovery and internal pump leaks
Cons
- Requires precise measurement of 42mm hole-to-hole spacing before purchase
- Does not include cylinder head gaskets, mounting hardware, or valve plate seats
- Requires mechanical disassembly of the compressor cylinder head to install
FABULETTA Air Compressor Cylinder Head Rubber
The FABULETTA Type A rubber cylinder head gasket provides an 0.8mm resilient sealing barrier engineered to stop air leaks and restore pump compression during compressor head servicing. It offers an accessible, maintenance-friendly replacement for garage DIYers and equipment technicians rebuilding worn top-end seals.
Pros
- Durable 0.8mm rubber material provides uniform compression across cylinder head mating surfaces
- Targeted replacement part helps eliminate head air leaks and restore compressor pressure holding
- Cost-effective solution for routine maintenance and field repairs on compatible compressor pumps
- Compact spare part that stores conveniently inside any garage or mobile service tool kit
Cons
- Requires careful physical comparison against the seller size chart to avoid mismatching with Types B through E
- Includes only a single gasket washer rather than a full multi-piece cylinder overhaul set
- Rubber formulation can degrade over time if subjected to severe overheating from extended continuous duty cycles
Air Compressor Cylinder Head Rubber Gasket Seal
This 0.8mm rubber cylinder head replacement gasket provides a flexible seal to reduce air leakage and maintain pump compression on compatible small compressor heads. It is a budget-friendly spare for garage DIYers and equipment maintenance technicians rebuilding small pump valve plates.
Pros
- 0.8mm rubber material provides flexible sealing across valve plate mating surfaces
- Inexpensive replacement part for targeted small pump maintenance
- Compact dimensions make it easy to store in a mobile toolbox as an emergency spare
- Helps eliminate air leaks and recover pump pressure when matched properly
Cons
- Includes only a single gasket piece rather than a complete compressor overhaul kit
- Requires careful cross-referencing with the seller size diagram to prevent sizing mismatches
- Rubber construction may have lower heat tolerance than metal or composite high-duty head gaskets
Frequently Asked Questions
How do you identify parts using an air compressor pump parts diagram?
Match the pump model stamped on your crankcase directly to the manufacturer schematic. An accurate air compressor pump parts diagram shows the exact layout of cylinder heads, valve plates, and crankcase assemblies. Comparing the schematic against worn components like 51mm piston rings ensures you get matching bolt patterns and port sizes. This step prevents CFM bottlenecks and pressure loss from ill-fitting replacement parts in 2026.
When should compressor valve plates or reed valves be replaced?
Cracked or warped reed valves require immediate replacement whenever your pump struggles to build full tank PSI or takes twice as long to cycle. Damaged valves allow compressed air to backflow into the cylinder, causing CFM starvation for connected air tools. Installing a fresh reed valve replacement kit restores positive cylinder compression and stops pump head overheating.
Why does air leak continuously from the pressure switch unloader port?
A faulty tank check valve causes continuous air leakage out of the unloader relief port after the motor shuts off. The internal valve seal fails to close, letting stored tank pressure escape backwards. Installing a brass check valve with 1/2-inch NPT tank threads and a 1/8-inch compression unloader port stops this leak immediately, keeping your tank pressurized.
How do you choose the right cylinder head gasket for a compressor pump?
Check the pump cylinder bore dimensions and valve plate channels against your model breakdown. Oil-free pumps often use 0.8mm resilient rubber seals matched to specific head profiles, whereas cast iron pumps require composite gaskets. Verifying gasket cutouts against your pump head eliminates air leakage around the cylinder rim and maintains working pressure.
Should you replace all pump gaskets during a top-end valve rebuild?
Yes, installing a complete gasket kit during top-end maintenance is the best way to prevent future pressure loss. Reusing crushed gaskets almost always causes air leaks between the valve plate and cylinder head once re-torqued. Complete gasket sets provide fresh seals for the head and cylinder joints, ensuring your Air Compressor Pump Parts Diagram overhaul holds peak tank pressure securely throughout 2026.
